Philips Hue A19 2100K

Test Date: August 16th, 2024
Firmware: 1.116.5

This page may contain affiliate links. Click here to read our affiliate policy.

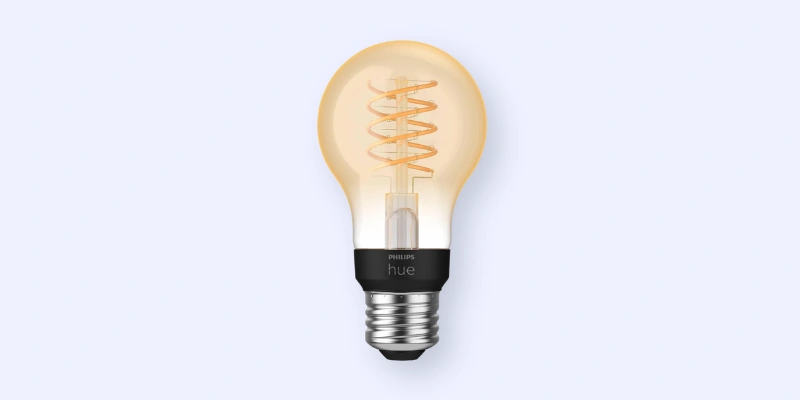

Philips Hue A19 2100K product photo

Specifications

Model: LWA023
Shape:
A19
Base:
E26
Weight:
40g
Wattage:
6.4W
Protocols:
Zigbee, Bluetooth
Matter Enabled: With Hue Hub
Color Mode:
Warm White
CCT:
2050K
Brightness:
12-550 lumens
Duv:
0.0015
CRI (Re):
78.6
TM-30 Rf: 79
TM-30 Rg:
102

White Data

Spectral Power Distribution Graph Philips Hue A19 2100K
Philips Hue A19 2100K tm30 report

Flicker Data

Philips Hue A19 2100K Flicker Waveform Graph 100 Percent Brightness
Philips Hue A19 2100K Flicker Waveform Graph 50 Percent Brightness

Dimming Algorithm

Dimming Graph Philips Hue A19 2100K

Thermal Image

Philips Hue A19 2100K thermal photo

Learn More

All of this data can be confusing at first, read through this section, and I promise it won’t be any longer.
You’ll be an expert!

Lumens tells you how bright a light source is.

Most lights state they emit “800 lumens” or “1600 lumens”, however, these are seldom accurate.

Our equipment can measure lumen output, so we’ve recorded the average lumen output for whites and RGB settings.

This means you can see just how bright or dim a light can get and how vibrant the RGB colors might be.

Correlated color temperature or CCT refers to the shade of white a light source is, essentially how warm or cool a light source appears.

When you heat a metal, it goes from orange to white, to blue. This color gradient is referred to as the black body locus.

Planckian-locus-on-CIE-1976-u-v-chromaticity-diagram-16
The black body locus appears in the middle of the CIE’s 1976 chromaticity chart.

A CCT of 2700K will be more orange, while 6500K will appear more blue.

representation of color temperature from various lights

Color temperature isn’t the whole picture though, there’s also tint or Duv.

Duv shows you how far a light’s color deviates from the black body locus:

black body locus with duv labels
Rarely does a light source fall directly on top of the BBL curve.

A negative Duv indicates that the source is “below” the blackbody locus, having a purplish tint, while a positive Duv indicates that the source is “above” the blackbody locus, having a greenish tint.

Most people seem to prefer a slightly negative Duv over a positive one.

We’ve highlighted Duv which exceeds +/- 0.002 as this is about when tint usually becomes noticeable.

For white tunable LEDs, we’ve included a blackbody deviation chart so you can see how well a light stays within the 0.002 limit across its range.

a line graph displaying the duv deviation from baseline across multiple color temperatures
An example of a blackbody deviation chart.

The oldest and most widely adopted color rendering metric is the color rendering index or CRI.

This essentially compares a reference light (such as sunlight) to the light being tested. A score of 100 indicates that the test source reflects colors identically to the reference light.

Color rendering of an apple from lights of CRI 97, 90, and 80

CRI leaves a LOT to be desired and has since become obsolete with the recent development of the TM-30 standard, however, since everyone is still using it, we’ve decided to include it in our measurements.

CRI Ra vs Re diagram

You may have noticed however that we use CRI “Re”, which includes saturated colors such as R9 or deep red. This is a much harder score to rank high in. When companies state their “CRI” score, they’re referring to CRI Ra, which excludes these color. But still, just use TM-30 Rf, CRI sucks.

The new TM-30 standard is a far more modern and useful set of color quality metrics.

TM-30 was created in 2015 and was designed to replace the antiquated CRI standard.

TM-30 gives us tons of useful information for grading the quality of a light source:

Rf or Fidelity

This is a number from 1 to 100 that measures the reflected light accuracy compared to a standard, similar to CRI.

While CRI only measures 8 to 15 colors for its average score, TM-30 uses 99 total colors.

Graphic showing the 8 colors used to determine CRI score versus the 99 colors used to determine the TM-30 fidelity score

The fidelity graph looks like this, giving you an idea of how accurately it reflects certain colors.

tm-30 color fidelity graph
TM-30 fidelity graph showing how well a light source reflects all 99 colors

Rg or Gamut

This number shows how saturated a light source is on average. A number higher than 100 indicates it’s slightly over-saturated, while a number under 100 indicates under-saturation.

Color Vector Graphic

Finally, we get the CVG, which gives us a visual representation of color saturation.

a graphic explaining how to interpret a color vector graphic

We’ve included a full TM-30 report for each CCT tested.

A thermal image is taken of each bulb after 1 hour at maximum brightness:

thermal photo of wyze color a19
LEDs will often continue to increase in heat beyond 1 hour, just at a much slower rate.

This is mostly just for fun…

Smart lights dim in one of two ways:

  • Logarithmic
  • Linear

Here is what logarithmic dimming looks like:

Dimming Graph - LIFX A19 Color 9W

And here is what linear dimming looks like:

Dimming Graph - wyze color a19

You may think that linear dimming makes the most sense, but humans perceive light changes logarithmically, so you may prefer this style of dimming over linear.

Most lights modulate their brightness over time. This is often referred to as “flicker” although this is a generic term for the idea.

There are several ways to measure temporal light modulation and artifacts.

We measure just about all of them using a LabFlicker meter and describe them in more depth below.

Included are waveform graphs and test reports at 100% and 50% brightness levels.

Temporal Light Modulation and Artifact Measurement Standards

Here are the metrics we measure:

1. Flicker Risk

According to the IEEE’s 1789 flicker standard, flicker can be grouped into three categories:

  • No Risk
  • Low Risk
  • High Risk

This is an oversimplification of flicker but is useful for “at a glance” judgment of a light’s flickering.

2. Frequency

Well built drivers will maintain a 0 Hz flicker across it’s brightness range, while poor drivers will almost always flicker at around 120 Hz, equal to the 120V energy system used in the US.

Many lights flicker anywhere from 120-4000 Hz and can vary considerably within this range.

3. Flicker Depth

This tells us exactly how much the light intensity changes from maximum to minimum brightness.

A flicker depth of 90% means the light source is dimming down to 10% of it’s maximum brightness.

4. Flicker Index

Flicker Index is an older metric that tries to quantify the “flicker” by calculating the area over the average divided by the total between both:

diagram showing how the flicker index is calculated

Many people consider this metric useless compared to the other newer ones, but it’s generally considered that the lower the number the better.

5. ASSIST Mp

This is another metric used to quantify flicker severity perceived by individuals under different lighting conditions.

It takes into account factors such as flicker frequency and modulation depth to assess how noticeable and potentially uncomfortable flicker may be.

We like to see this number stay under 0.1

6. SVM (Stroboscopic Effect Visibility Measure)

SVM seeks to determine how noticeable the stroboscopic effect from a light source is.

A stroboscopic effect occurs when a fast-moving object appears stationary or moves slowly under a flickering light source that flashes at a frequency matching or close to the object’s motion frequency, creating an illusion of motion distortion or stillness.

  • SVM < 1: Not Visible
  • SVM = 1: Just Visible
  • SVM > 1: Visible

7. Pst LM (short-term light modulation)

Visible flicker typically occurs when the frequency is from 0.3-80 Hz.

A PstLM of 1 means that the average observer has a 50% probability of detecting flicker, so the lower the better.
